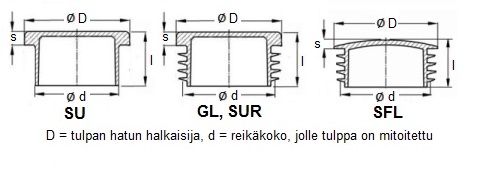

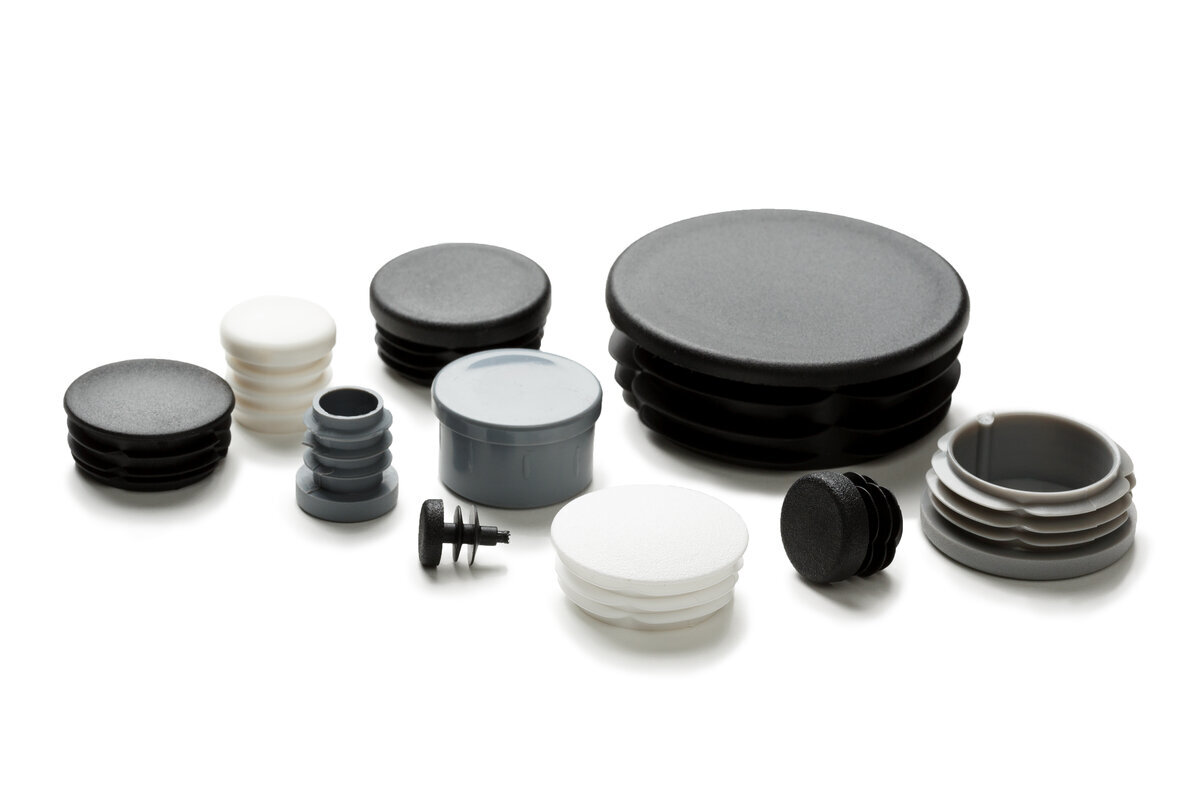

Päätytulpat pyöreät
# |
Nimike |
D |
d |
l |
s |
Vakiovärit |
|
|
Lisätiedot |
1 |
GL12x0.8-2 |
12 |
8-10.4 |
16 |
3.5 |
MU |
0.15 |
|
|
|
|
2 |
SFL14X0.8-2 |
14 |
10-12.4 |
14 |
2 |
MU, VA |
0.07 |
|
|
|
|
3 |
GL16x0.8-2 |
16 |
12-14.4 |
17 |
5 |
MU |
0.09 |
|
|
|
|
4 |
SUR19x1.5-2 vino |
19 |
15-16 |
20 |
|
MU, HA |
0.09 |
|
|
|
|
5 |
SUR19x1.5-2 |
19 |
15-16 |
20 |
4.5 |
MU, HA |
0.09 |
|
|
|
|
6 |
SUR20x1.5-2 |
20 |
16-17 |
22 |
5 |
MU, HA |
0.09 |
|
|
|
|
7 |
SFL20x0.8-2.5 |
20 |
15-18.4 |
15 |
2.5 |
MU, VA |
0.09 |
|
|
|
|
8 |
GL20x0.8-2.5 |
20 |
15-18.4 |
17 |
5 |
MU, VA |
0.13 |
|
|
|
|
9 |
SUR22x1-1.5 |
22 |
19-20 |
22 |
5 |
MU |
0.10 |
|
|
|
|
10 |
SUR22x1-1.5 |
22 |
19-20 |
22 |
5 |
VA |
0.12 |
|
|
|
|
11 |
SFL23x0.8-2.5 |
23 |
18-21.4 |
15 |
2.5 |
MU, VA |
0.12 |
|
|
|
|
12 |
SFL25x1-2.5 |
25 |
20-23 |
15 |
3 |
MU, VA |
0.16 |
|
|
|
|
13 |
GL25x1-3 |
25 |
19-23 |
17 |
5 |
MU |
0.15 |
|
|
|
|
14 |
SFL25x3-5 |
25 |
15-19 |
15 |
3 |
MU, VA |
0.26 |
|
|
|
|
15 |
GL27x1-3 |
27 |
21-25 |
17 |
5 |
MU |
0.20 |
|
|
|
|
16 |
SU2825 |
28 |
25 |
21 |
4 |
VA, HA |
0.20 |
|
|
|
|
17 |
SFL28x0.8-2.5 |
28 |
23-26.4 |
15 |
3 |
MU, VA |
0.19 |
|
|
|
|
18 |
GL28x0.8-2.5 |
28 |
23-26.4 |
17 |
5 |
MU |
0.20 |
|
|
|
|
19 |
GL30x0.8-2.5 |
30 |
25-28.4 |
17 |
5 |
MU |
0.15 |
|
|
|
|
20 |
SU3229 |
32 |
29 |
18 |
4 |
HA |
0.25 |
|
|
|
|
21 |
SFL32x0.8-2.5 |
32 |
27-30.4 |
15 |
3 |
MU, VA |
0.22 |
|
|
|
|
22 |
GL32x1-2.5 |
32 |
27-30 |
17 |
5 |
MU |
0.17 |
|
|
|
|
23 |
GL34x3-5 |
34 |
24-28 |
17 |
5 |
MU |
0.56 |
|
|
|
|
24 |
SFL35x1-3 |
35 |
29-33 |
16 |
3.5 |
MU, VA |
0.25 |
|
|
|
|
25 |
GL35x1-3 |
35 |
29-33 |
17 |
5 |
MU |
0.20 |
|
|
|
|
26 |
GL36x1-3 |
36 |
30-34 |
17 |
5 |
MU |
0.20 |
|
|
|
|
27 |
SU3835 |
38 |
35 |
14 |
4 |
MU, VA, HA |
0.20 |
|
|
|
|
28 |
SFL38x1-3 |
38 |
32-36 |
15 |
3 |
MU |
0.28 |
|
|
|
|
29 |
GL38x1-3 |
38 |
32-36 |
17 |
5 |
MU |
0.26 |
|
|
|
|
30 |
GL40x1-3 |
40 |
34-38 |
17 |
5 |
MU, VA |
0.22 |
|
|
|
|
31 |
GL42x0.8-2.5 |
42 |
37-40.4 |
17 |
5 |
MU |
0.26 |
|
|
|
|
32 |
SFL45x1-3 |
45 |
39-43 |
15 |
5 |
MU, VA |
0.43 |
|
|
|
|
33 |
GL48.3x2.5-5.2 |
48 |
37.9-43.3 |
16 |
5 |
MU |
0.85 |
|
|
|
|
34 |
GL50x1-2.5 |
50 |
45-48 |
16 |
5 |
MU |
0.50 |
|
|
|
|
35 |
GL50x2.5-4.5 |
50 |
41-45 |
17 |
5 |
MU |
0.90 |
|
|
|
|
36 |
GL60x1.5-3 |
60 |
54-57 |
23 |
5 |
MU |
0.63 |
|
|
|
|
37 |
GL60x3-5 |
60 |
50-54 |
23 |
5 |
MU |
0.91 |
|
|
|
|
38 |
GL65x1.5-3.5 |
65 |
58-62 |
26 |
5 |
MU |
2.35 |
|
|
|
|
39 |
GL70x1.5-4.5 |
70 |
61-67 |
25 |
5 |
MU |
1.65 |
|
|
|
|
40 |
GL76.1x1.6-4 |
76.1 |
68.1-72.9 |
27 |
6 |
MU |
2.20 |
|
|
|
|
41 |
SFL80x1-3 |
80 |
74-78 |
25 |
3.5 |
MU |
1.70 |
|
|
|
|
42 |
GL88.9x1.8-4 |
88.9 |
80.9-85.3 |
27 |
6 |
MU |
2.20 |
|
|
|
|
43 |
GL100x2-4.5 |
100 |
91-96 |
34 |
6 |
MU |
4.20 |
|
|
|
|
44 |
GL102x2-4 |
102 |
94-98 |
25 |
5 |
MU |
4.27 |
|
|
|
|
45 |
GL108x2.9-5 |
108 |
98-102.2 |
35 |
6 |
MU |
4.38 |
|
|
|
|
HA = harmaa, lähinnä RAL7046
